358 Anti Climb Fence
The Strengths of the 358 Anti Climb Fence
The 358 high-security fence – also referred to as an anti-climb fence – is a premium welded wire mesh panel known for its high tensile strength and advanced security design. The number “358” indicates a mesh opening of 3” × 0.5” and a wire diameter of 8-gauge (approximately 76.2 mm × 12.7 mm × 4 mm).
This fence is engineered to function as a robust, climb-resistant, and cut-resistant barrier, delivering enhanced perimeter protection. The small mesh opening makes climbing or cutting extremely difficult – even a finger can hardly pass through.
At the same time, the rigidity of the 8-gauge wire creates a sturdy structure, making the fence a highly effective solution for property security and access control. Typical applications include high-security areas such as schools, industrial and commercial sites, police stations, prisons, government buildings, airports, railways, seaports, and more.
Specification of the 358 Anti Climb Fence
A: Height: 1200–2500 mm
B: Width: 2000–3100 mm
C: Wire Diameter: 3.2 mm (10 gauge), 4.0 mm (8 gauge)
D: Mesh Opening: 12.7 × 76.2 mm (0.5″ × 3″)

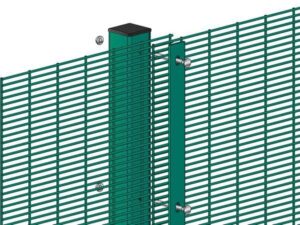

E: Clamp: metal clamp / tension bar covered
F: Post: square post (60 × 60 × 2.0/2.5/3.0 mm, 80 × 80 × 2.0/2.5/3.0 mm);
Rectangular post (40 × 60 × 2.0/2.5/3.0 mm, 40 × 80 × 2.0/2.5/3.0 mm, 60 × 80 × 2.0/2.5/3.0 mm, 80 × 100 × 2.0/2.5/3.0 mm)
G: Post Cap: metal rain cap / anti-UV plastic cap
Notes :
Besides the 358 model, the 3510 model is also offered as another high-security mesh with the same opening size. The key difference is that the 3510 uses a 10-gauge wire diameter instead of the 8-gauge wire found in the 358 model.
All RAL colors are available.
Custom materials and specifications can be requested.

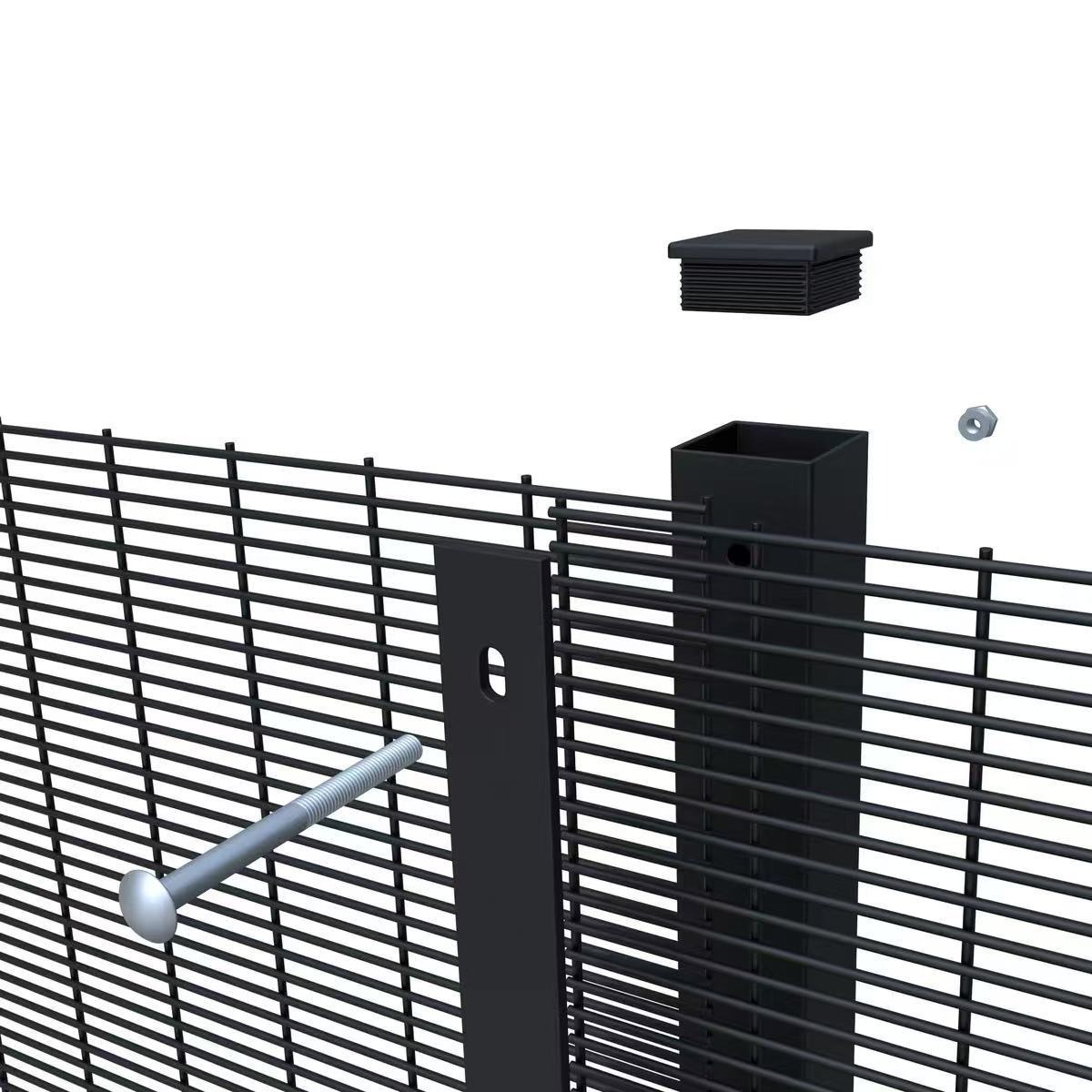

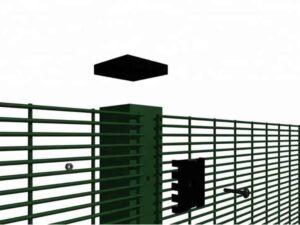

Components & Accessories
Features of the 358 Anti Climb Fence：
Small Opening: The tightly spaced mesh openings remove any footholds for climbing.
Sturdy Structure: Strong welding at each intersection creates a durable, long-lasting panel structure.
Resistant to Cutting Tools: Thanks to solid welded joints, a small mesh opening, and a thick wire diameter, the mesh resists both manual and powered cutting tools.
Corrosion and Rust Resistance: Galvanization plus powder coating significantly improves resistance to rust, corrosion, and weather damage.

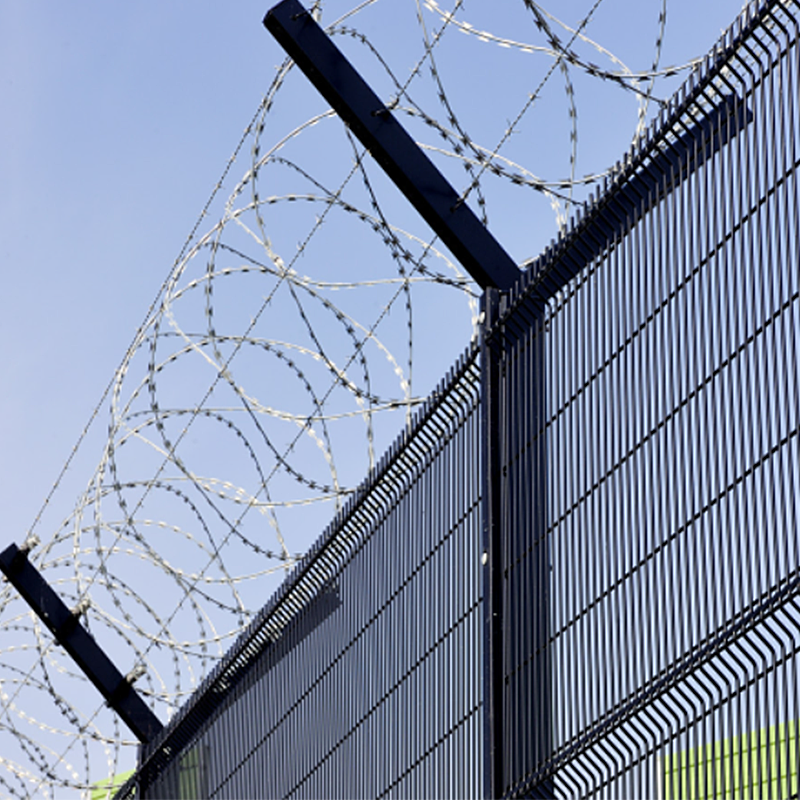

Enhanced Security: The fence can be combined with barbed wire and razor wire to achieve an even higher level of security.
358 high security fence (358 anti-climb fence) usage：
The 358 high-security fence is ideal for prisons, borderlines, power plants, and other locations that demand strong security and privacy. Moreover, our products come with galvanized or PVC coating surface treatments, offering excellent corrosion resistance for long-term outdoor use.
